ZHD-T01 Vertical Weighing and Packaging System

ZHD-T01 Standard Vertical Weighing and Packaging System Overview

The ZHD-T1 Standard Vertical Weighing and Packaging System is an economical, fully automatic quantitative packaging solution. It leverages multi-head combination weighers for precise metering and pairs with a vertical bag-making machine to automate the entire workflow: material feeding, weighing, filling, bag forming, sealing, date printing, and finished product conveyance. With low acquisition costs and exceptional value, this compact unit features flexible auxiliary equipment options and occupies minimal floor space. Compatible with 0.03~0.15mm thick composite films, single-layer PE films, paper-plastic laminates, and other packaging materials, it is the ideal general-purpose granule packaging solution for small and medium-sized processing plants.

Applicable Scope

Suitable for packaging confectionery, sunflower seeds, jelly, frozen snacks, pistachios, peanuts, nuts, almonds, raisins, and other snacks; pet food; puffed snacks; hardware; plastic granules; and various granular, flake-shaped, strip-shaped, round, or irregular materials requiring precise weighing and packaging.

Key Features

1. Fully automates the entire process of material feeding, metering, bag filling and sealing, date printing, and discharge conveying.

2. Broad application range and strong material adaptability.

3. High accuracy and efficiency in measurement.

4. Ideal for customers seeking cost-effective, versatile packaging solutions with no special requirements.

Device Structure and Working Principle

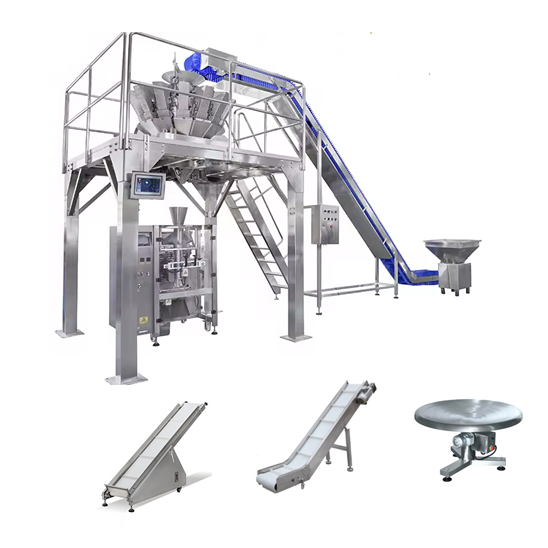

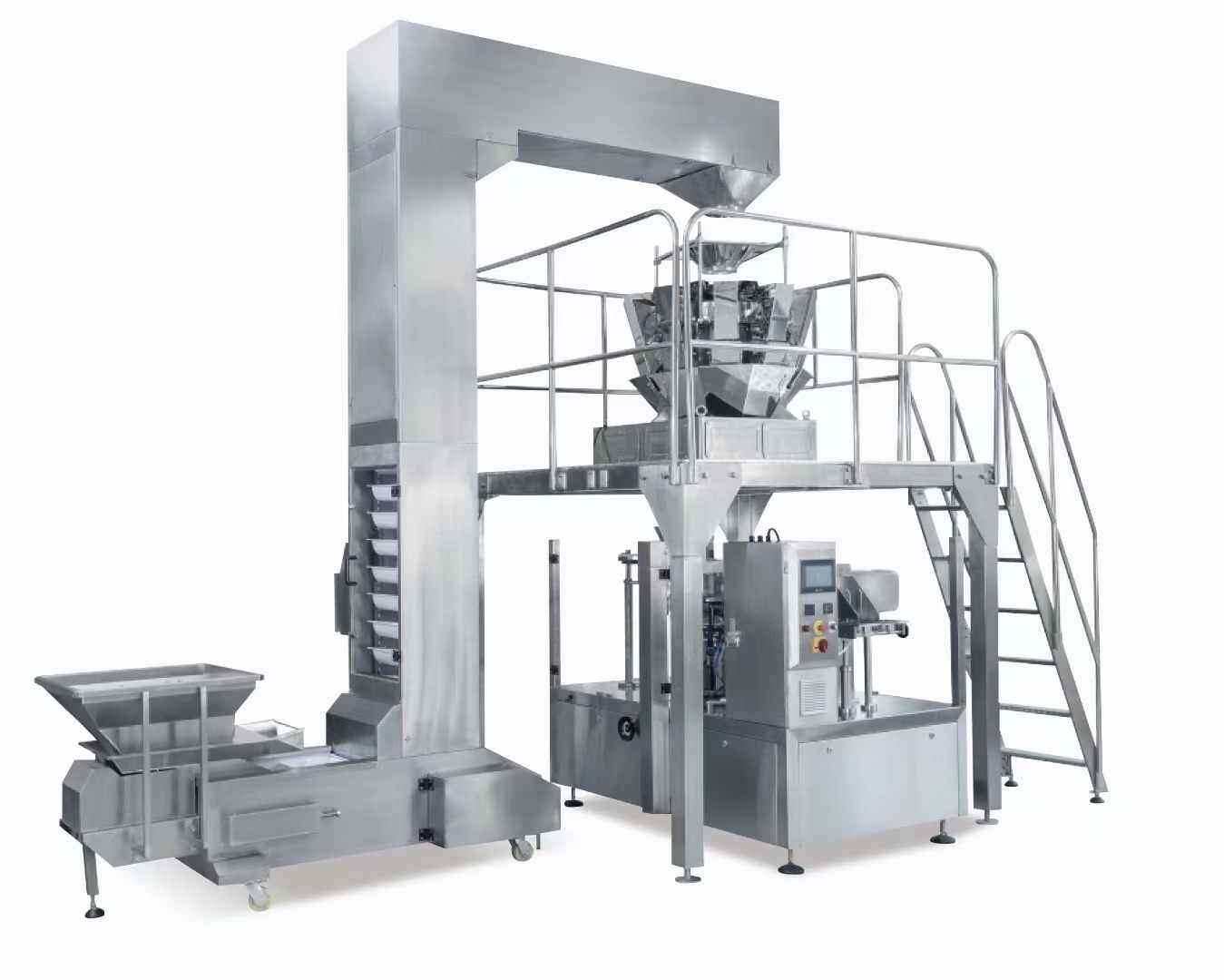

The entire system coordinates 6 core components:

Vibrating Feeder:Ensures consistent, uniform feeding to maintain stable material supply and prevent jams or shortages.

Z-Type Elevating Conveyor:Enclosed bucket elevator for conveying material from the raw material hopper to the combination weigher hopper.

Work Platform:Supports multihead weighers for easy equipment debugging and maintenance.

Computerized Multi-Head Weigher:High-precision dynamic weighing, portioning, and removal of out-of-tolerance weight items;

Vertical Packaging Main Unit:All-in-one formation: bag making, sealing, filling, coding, and cutting.

Finished Product Conveyor:Packaging complete; products automatically dispensed and handed off to backend boxing process.

The entire production process runs fully automatically, eliminating the need for manual feeding and bagging to significantly reduce labor costs.

5 Core Product Advantages

Excellent value:Low total cost of ownership, complete range of packaged host units, optional auxiliary equipment tailored to your needs, low entry barrier, and ideal for small-to-medium factory budgets.

High versatility of materials:Compatible with granules, flakes, strips, and irregularly shaped materials; suitable for food, hardware, and plastics industries.

Precise and efficient measurementMulti-head combination weighers enable high-speed continuous packaging with minimal weighing error and stable production capacity.

Compatible with a wide range of packaging consumables:Fits all film sizes from 0.03 to 0.15mm, with free switching among 10+ bag types including back seal, four-side seal, and gusset bags.

Compact and easy to place:Modular vertical layout takes up less floor space than horizontal assembly lines, making it easy to install even in older workshops.

Detailed Explanation of Optional Auxiliary Equipment Functions

1. Weight Check Machine

Used for final weight re-inspection of finished bags. Automatically rejects underweight and overweight non-conforming products. Provides yield rate statistics. No need to repurchase if you already have a combined metal detector and weight checker.

2. Horizontal Metal Detector

Final product inspection after packaging to screen for metal contaminants such as iron and stainless steel, ensuring quality control before shipment.

3. Drop-through Metal Detector

Pre-packaging feed chute inspection: Removes metal contaminants from materials before they enter the packaging machine to reduce downstream rework. Compact design installs directly at the feed point, saving floor space.

4. Combined Metal Detector and Re-Inspector

All-in-one metal detection and weight recheck system replaces two separate units, reducing procurement, setup, and maintenance costs.

5. Disc Feeder

Finished goods collection and organization, manual secondary sorting and repackaging for transit support, tailored for production lines requiring manual post-processing.

Bag Type Adaptation and Application Scenarios

Supported bag types: three-side seal, four-side seal, flat pouch, back-seal pillow pouch, gusseted bag, hang-hole bag, and four-corner bottom-insert bag;

Real-world use cases:

Bulk packaging of snacks (sunflower seeds, peanuts) at snack processing plants; fruit drying and freeze-dried food packaging at freeze-drying facilities; small-bag pet food portioning for cat and dog kibble at pet food factories; plastic granule raw material packaging at plastics manufacturers; and small fastener bundling at hardware factories.
