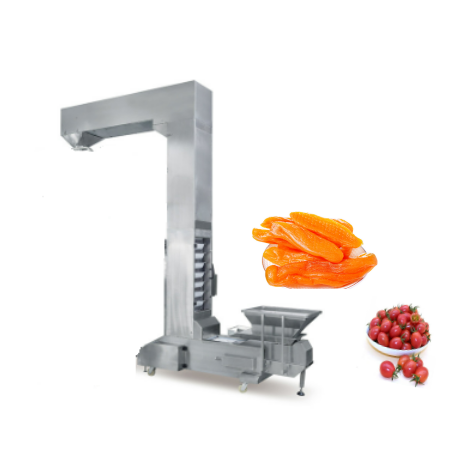

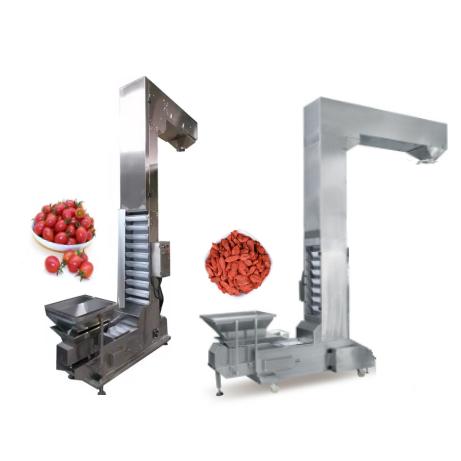

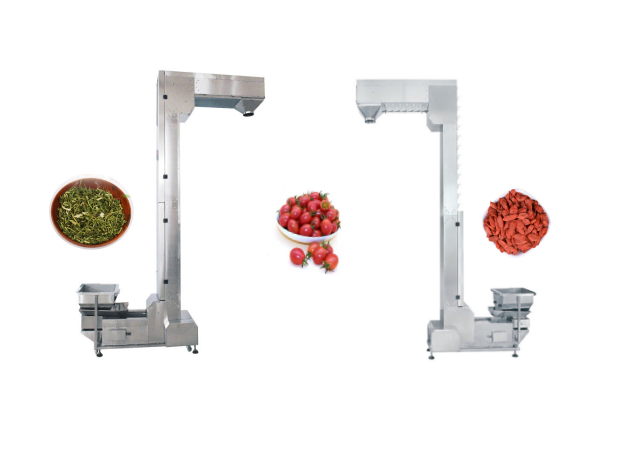

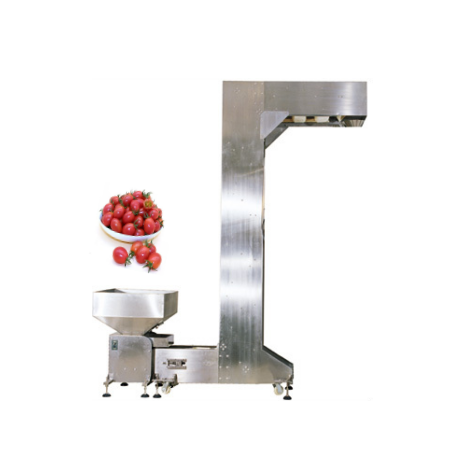

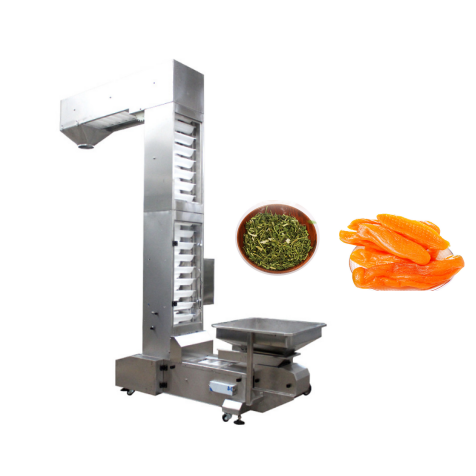

ZHD-ZT1.6 Z-Type Elevator

I. Product Overview

This Z-type bucket elevator is designed for vertical conveying of granular, flake, and small-particle food materials, fully compatible with automated food packaging production lines. The entire unit is constructed from 304 stainless steel food-grade material with a fully enclosed dust-proof structure, significantly reducing material breakage and dust emissions while meeting hygiene standards for food processing facilities.

II. Core Advantages

Food-grade 304 stainless steel body resists corrosion, is easy to rinse, and prevents raw material contamination.

The hopper's gentle lifting mechanism ensures a smooth conveying process without squeezing or collisions, resulting in minimal breakage for fragile materials such as puffed snacks and nuts.

Fully enclosed casing prevents dust and material spillage, maintains workshop cleanliness, and reduces raw material loss.

Continuous chain conveyor with variable frequency drive for smooth, jam-free operation at speeds of 10-30 m/min, synchronized to packaging cycle times.

Supports customizable lift height, hopper capacity, multiple discharge outlets, and feeding methods tailored to your needs.

3. Applicable Industries

Puffed snack packaging lines, nut and dried fruit processing conveyors, grain and cereal feeding systems, candy and biscuit production lines, and automated seasoning granule packaging equipment.

IV. Technical Specifications

Main material: 304 stainless steel

Conveying Speed: 10~30 m/min, Variable Frequency Adjustable

Custom Height: 1-10 meters

Hopper Capacity: 0.5L-5L Options

Drive: Three-phase Variable Frequency Motor

Features: Dust-free, low breakage, food-grade

V. Working Principle

Material drops from the feed inlet into the hopper. A continuous chain lifts the hopper vertically to a designated height, where it tilts to discharge material into packaging equipment. The empty hopper then returns to the feed position, enabling fully automatic, continuous feeding without manual supervision.
