ZHD-DQJ01 Inclined Hoist

I. Product Overview

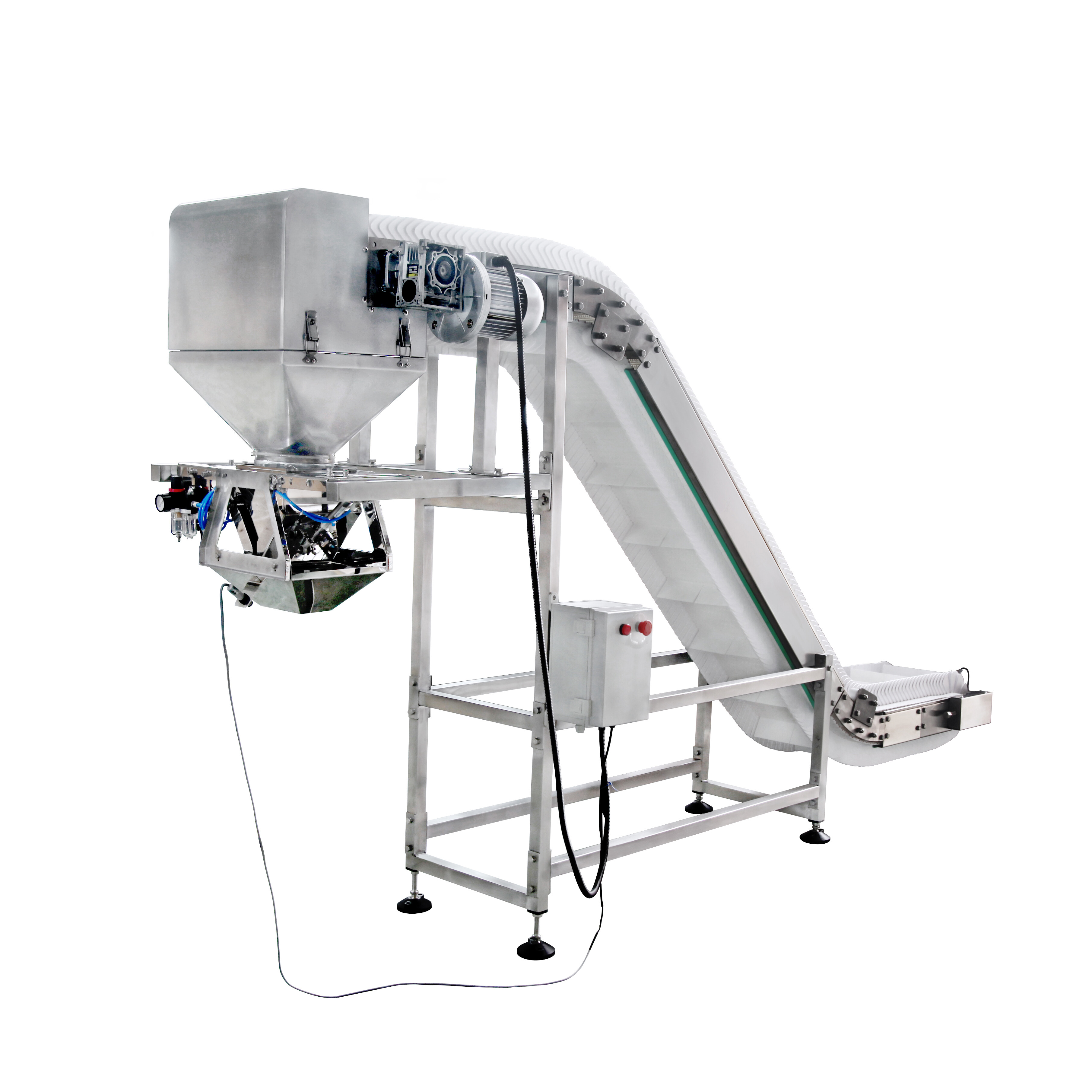

ZHD-DQJ01 Inclined Elevator: A specialized machine for steep-angle material conveying. It features a corrugated sidewall and cleated belt to prevent material sliding and spillage common with standard belts at high inclines. The system integrates automatic feeding, inclined transport, and elevated discharge in one compact unit with a small footprint. It connects directly to upstream and downstream equipment such as packaging machines, multihead weighers, and silos. Widely used for continuous material handling in food, plastics, chemical, and lithium battery industries.

II. Equipment System Composition

Modular, collaborative operation with easy assembly, disassembly, and maintenance.

Feed Section Frame: Receives incoming material, guides it smoothly to prevent spillage.

Drive Head Assembly: Includes the drive roller, motor, and reduction mechanism to provide power for the entire conveyor system.

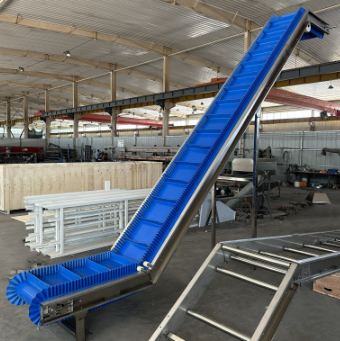

Ribbed side-wall belt conveyor: Core conveying component with raised edges and crossbars to prevent material rollback, enabling steep incline transport without slippage.

Central chassis frame: Provides overall structural support with customizable lift height and tilt angle.

Tension Adjustment Mechanism: Adjusts belt tightness, compensates for belt stretch, and reduces the risk of misalignment.

Discharge Section: High-level directional discharge, compatible with silos, packaging equipment, and downstream production lines.

3. Key Product Features

Steep Incline Conveying: Enables high-angle uphill transport to prevent material spillage and reduce loss.

Compact footprint with flexible installation height compared to Z-type bucket elevators, reducing factory space requirements.

Contact material options include 304 stainless steel, meeting hygiene and corrosion resistance requirements for food and lithium battery industries.

Smooth, low-noise operation with adjustable conveyor speed to meet varying material throughput requirements.

Modular rack design for easy maintenance and simple belt installation or replacement.

Supports non-standard customization: height, bandwidth, and tilt angle can be tailored to on-site conditions.

4. Applicable Materials

Granular materials, bulk solids, plastic pellets, food ingredients, chemical granules, lithium battery materials, and other poorly flowing substances.

V. Optional Auxiliary Equipment and Functional Details

Variable Frequency Drive System: Enables stepless speed adjustment to match upstream and downstream production capacity.

Belt Misalignment Detection Device: Triggers alarm and stops the belt to protect the conveyor, reducing fault risk.

Guard Protection Assembly: The entire unit is equipped with a safety enclosure to prevent dust and material splatter, enhancing on-site safety.

Level Detection Module: Install level sensors at the feed and discharge points to enable coordinated start/stop of upstream and downstream equipment.
