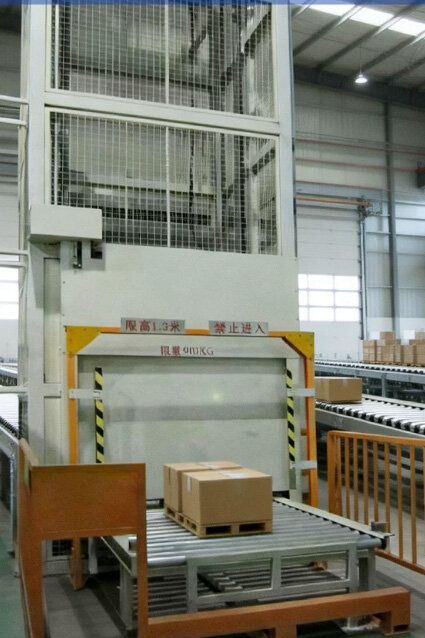

ZHD-TSJ01 Reciprocating Logistics Elevator

I. Product Overview

The ZHD Reciprocating Logistics Elevator is a standard heavy-duty lifting device for cross-floor cargo transfer in automated logistics systems. It uses motor-driven heavy-duty chains to automatically move pallets and stack-based materials between floors. Built with standardized modular assembly, it offers easy installation and disassembly, supports future expansion and production line upgrades, and seamlessly integrates with roller conveyors, transfer machines, sorting equipment, and host management systems. Compatible with various pallet sizes and full-stack loads, it is widely used in smart warehouses, manufacturing facilities, logistics industrial parks, and automated integration projects. Designed to meet safety and compliance requirements for both standard factory environments and export projects.

II. Equipment Structure Composition

The entire unit uses standardized, independent modular assembly for a robust structure. Mechanical, electrical, and safety modules are clearly separated to simplify maintenance. Key specifications:

1. Lifting drive mechanismBrake deceleration motor + heavy-duty transmission chain with integrated chain-break protection. Reliable braking, smooth start/stop operation; optimized for high-frequency continuous lifting tasks.

2.Cargo Platform MechanismSquare tube welded frame; roller-based transfer mechanism integrated into the work surface. High rigidity, handles heavy loads without deformation. Customizable internal dimensions to match various standard and non-standard pallets.

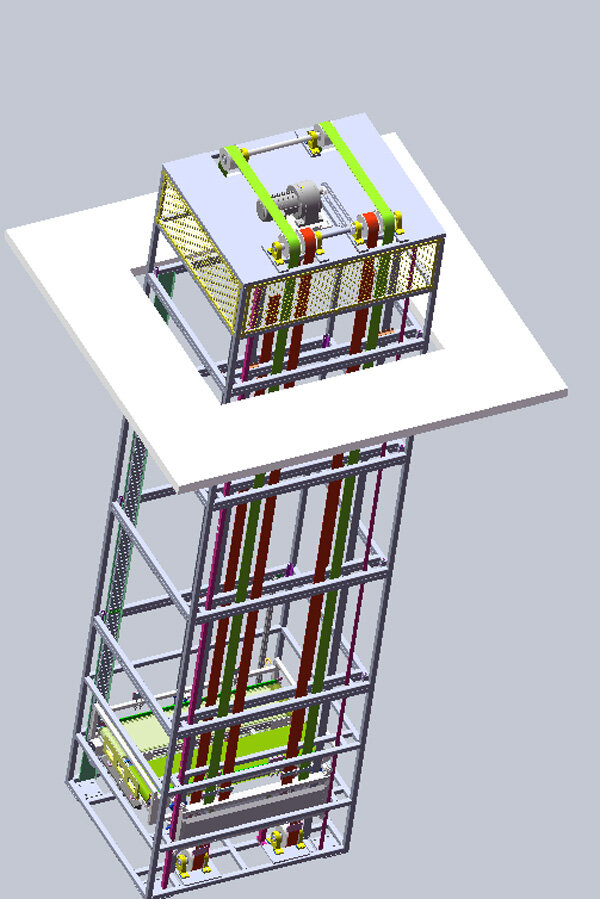

3.Main frame chassisHigh-strength square tube welded and powder-coated frame with superior torsional and seismic resistance, designed for long-travel applications. Adapts to floor openings and existing civil conditions on-site.

4.Multi-layered safety protection systemImport/export safety light curtains, overload detection alarms, upper/lower limit switches, mechanical hard stops, and emergency stop protection. Optional AI-based human intrusion detection, maintenance platforms, cage ladders, and safety fencing are available to comprehensively mitigate equipment operation risks.

5.PLC Intelligent Control SystemPLC programmable controller + HMI, supporting manual/automatic modes. Features self-diagnosis with audio-visual alarms and interlock capabilities with upstream/downstream equipment to prevent material collisions or crushing.

6.Automated Integration ModuleConnects to upstream and downstream conveyor systems; integrates barcode reading and dimension inspection modules. Supports integration with existing production line signals, MES, and WMS to build a complete automated logistics workflow.

3. Key Product Features

Heavy-duty stable transport for high-frequency operations

The equipment supports continuous transfer of heavy-load pallets with variable frequency speed control. Smooth acceleration and deceleration during lifting ensure vibration-free, drift-free operation with consistent cycle times, effectively protecting goods and pallets from impact damage while meeting the demands of uninterrupted factory production.

Multi-layered security protection, compliant with various project standards

Combines mechanical, electrical, and intelligent detection safeguards to ensure safe shutdown for overload, overtravel, or personnel intrusion. Aligns with regional safety standards per project requirements and includes complete technical documentation to reduce acceptance risks.

User-friendly interface; easy to debug and maintain

Configure the HMI touchscreen to display device status and fault codes clearly, enabling on-site personnel for easy debugging and troubleshooting. Manual mode supports single-unit maintenance, while automatic mode is optimized for continuous production in assembly lines.

Modular design for easy future expansion and upgrades

Each functional component is independently modularized for separate disassembly and part replacement without dismantling the entire unit. Supports on-site relocation, layout reconfiguration, and capacity expansion—ideal for retrofitting legacy production lines to minimize downtime and upgrade costs.

High on-site compatibility; adapts to diverse civil engineering conditions.

Compatible with existing on-site conveyor systems; available as part of a complete package including roll-up doors, safety fencing, and hole covers. Specifically designed for floor openings to provide gap sealing, adaptable to most industrial facility conditions.

IV. Use Cases

Compatible materials: Standard warehouse pallets, plastic/metal pallets, full-case shipments, and full-stack workpiece loads.

Applicable Industries: Intelligent Automated Warehousing, Equipment Manufacturing Workshops, Food and Pharmaceutical Factories, Logistics Sorting Centers, E-commerce Warehouses, Automated Integration Engineering Projects, and Legacy Factory Automation Upgrades.

V. Core Advantages

Modular and flexible assembly

Unlike traditional on-site welded units, our standardized modules offer flexible configuration, scalable expansion, and easy relocation. This approach significantly reduces total cost of ownership for maintenance, upgrades, and moving.

Comprehensive security protection system

Multi-layer protection with mechanical limits, electrical safeguards, and intelligent intrusion detection. Multiple fault interlocks trigger automatic shutdown to meet industrial safety standards and support high-compliance project acceptance.

Stable operation with a long service life

Proven chain drive solution using industry-standard components, designed for 24-hour high-frequency continuous operation in industrial environments with low failure rates.

High system compatibility

Integrates with roller conveyors, transplanters, and sorting equipment; connects to host management systems for rapid deployment of cross-floor automated logistics chains.

Low operational costs

Standardized generic parts simplify spare part procurement and replacement. Installation guidance and commissioning services are provided to reduce after-sales costs and downtime losses.
