1. Why Are Computer Multihead Weighers the Top Choice for Automated Production Lines?

In the era of industrial-scale intelligent manufacturing, batch packaging for snacks, frozen foods, Chinese herbs, and chemical granules faces significant limitations with traditional single-hopper scales and manual weighing: insufficient weighing efficiency to meet order capacity, high weight variance leading to raw material waste, rising labor costs, and inability to precisely quantify irregular materials.

The computer multihead weigher, with its technical advantages of multi-hopper combination calculation and millisecond-level optimal ratio selection, has become the standard equipment for automated quantitative packaging of various granular and irregular materials. It helps factories reduce waste, increase production capacity, and lower labor costs from the source.

II. Computer Combination Weigher: Product Definition and Working Principle

The computer combination weigher is an intelligent automatic weighing device powered by microcomputer algorithms and high-precision sensors. It comes standard with 8 to 32 independent weighing units. Material is fed via a vibrating system into individual hoppers. The main controller collects real-time weight data from all scales, uses built-in software to rapidly identify the optimal combination of weights from tens of thousands of possibilities that most closely matches the target net weight, and simultaneously discharges the corresponding hoppers for precise dosing.

Unlike single-point weighing, the combination weighing approach balances speed and accuracy from a fundamental perspective, making it ideal for irregular, varied loose materials.

III. Five Core Technology Highlights

Millisecond-level high-speed processing: Dedicated industrial processor instantly filters massive weight combinations, ensuring uninterrupted high-speed discharge.

Adaptive Intelligent Feeding: Automatically adjusts vibrator frequency based on material moisture, stickiness, and particle size to prevent clogging and bridging.

Smart Memory & Self-Learning: Stores operating parameters for dozens of materials. Switch products without repeated tuning—call up recipes with one click.

Fully modular chassis: The hopper, vibrator, and sensor are separate modular units. Faulty components can be removed and serviced individually without shutting down the entire line.

High-Precision Sensor Configuration: Equipped with imported strain-type and electromagnetic compensation sensors, achieving a measurement error as low as ±0.1~0.5g.

IV. Complete Machine Structure Details

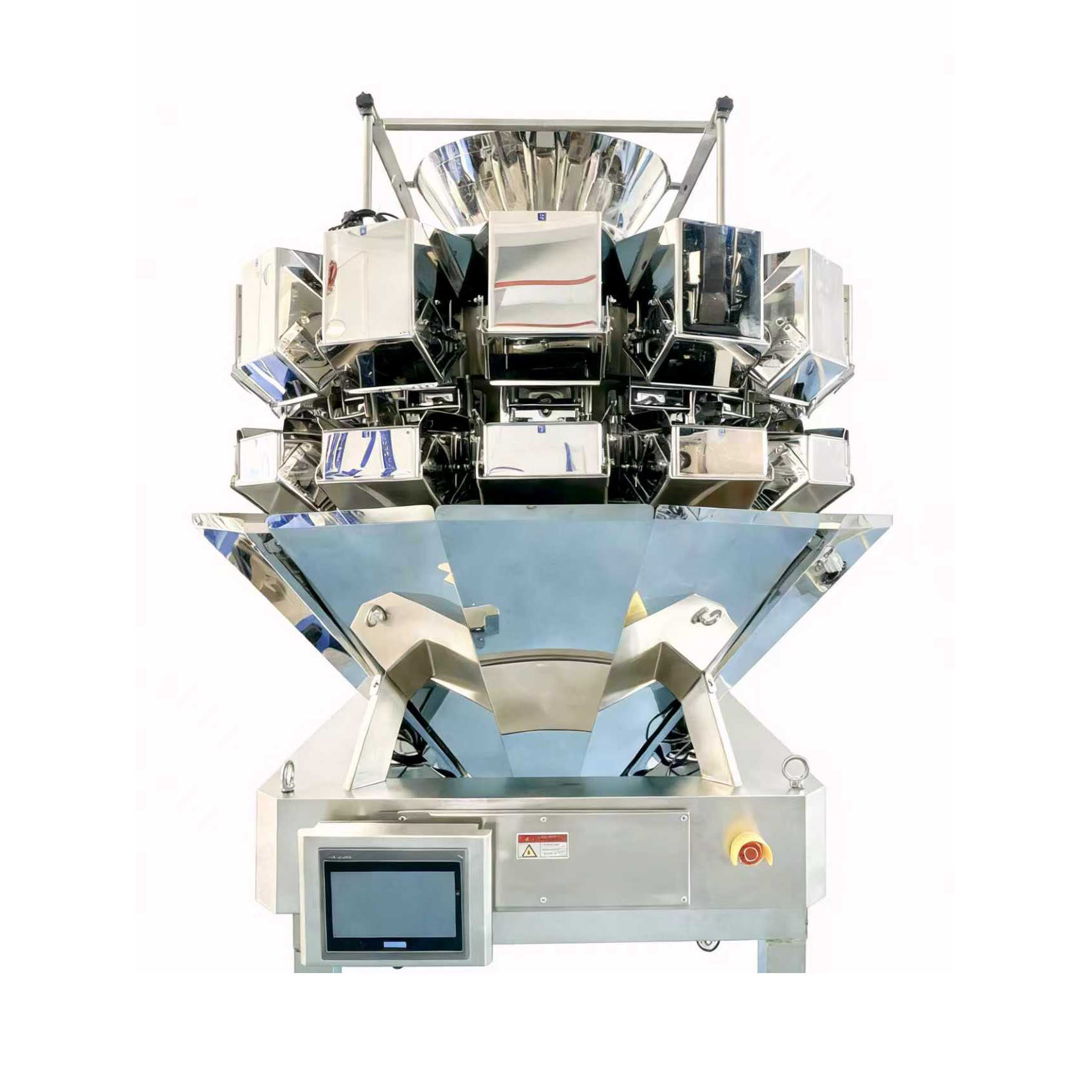

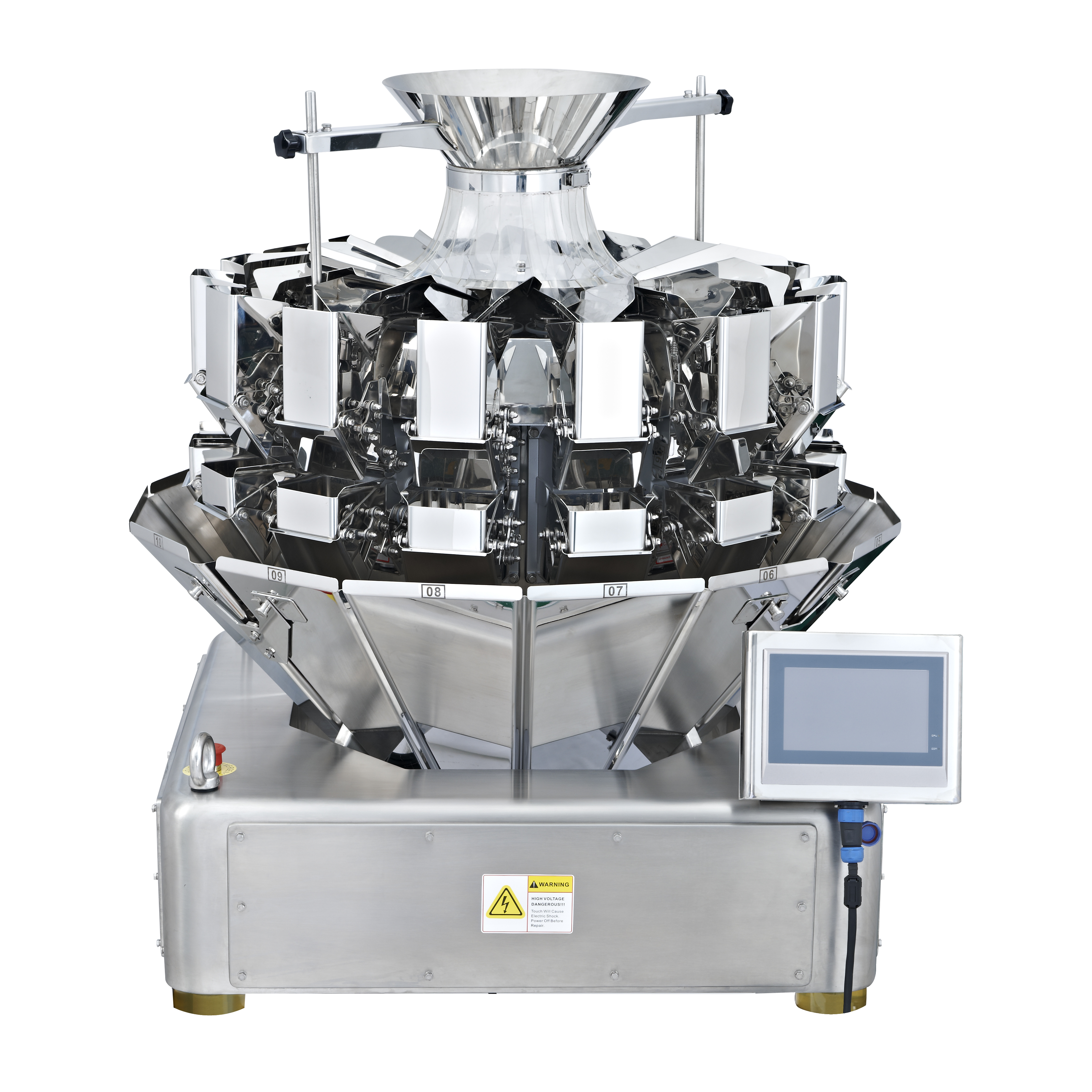

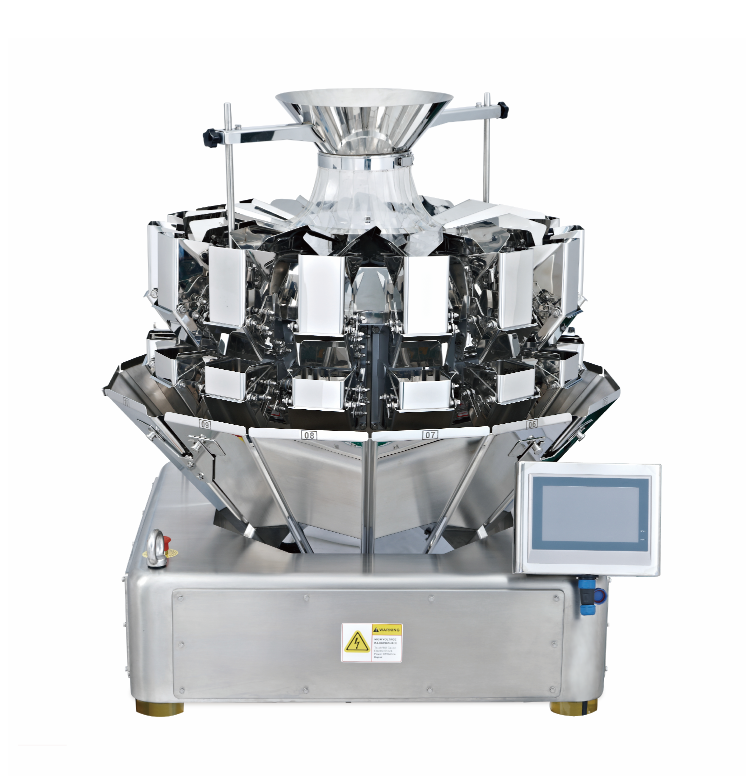

The complete computer combination weigher integrates 7 core components working in unison: a hopper buffer, linear vibratory feeder, multiple independent weighing hoppers, high-precision load cells, a PLC-based control system, a collecting hopper, and a touchscreen HMI. These components operate in a closed-loop cycle and seamlessly integrate with packaging machines, filling machines, and feeders to form a fully automated packaging line.

5. Industry-wide Application & Comparison of New and Old Weighing Data

Industries Served:

✅ Food Industry: Nuts, candies, puffed snacks, frozen meatballs, dried goods, and pet food portioning

✅ Healthcare Industry: Precise micro-weighing of tablets, capsules, and traditional Chinese medicine slices

✅ Chemical Industry: Granular Raw Materials, Plastic Pellets – Precise Quantitative Metering

✅ Hardware Industry: Counting and weighing screws, nuts, and small hardware components

Performance Benchmark Table

VI. Procurement Selection & Maintenance Pitfall Guide

Five Key Dimensions for Selection

Material properties such as stickiness, particle diameter, and flowability determine the vibrating machine and hopper design.

Target single-package weight: From grams to kilograms, matched with the appropriate multihead weigher range.

Production capacity: Daily output determines the number of hoppers (8 / 10 / 14 / 20 — select as needed);

Production environments: Select stainless steel, waterproof models for cleanrooms (food and pharmaceutical); apply dust-sealing treatments for chemical and dusty settings.

Backend integration: Connect with vertical packaging machines and bagging machines. Verify that the discharge port dimensions match in advance.

Daily Maintenance Essentials

Calibrate sensor zero-point regularly each month to eliminate accuracy drift caused by material residue.

Clean the inner walls of the weighing hopper daily; remove any caked-on material promptly.

Do not overload the sensor beyond its rated capacity to prevent irreversible damage.

Regularly check the vibrating feeder amplitude to ensure uniform material distribution.

VII. Future Intelligent Development Trends for Computer Combination Weighers

AI Algorithm Iteration: Devices learn material changes autonomously and automatically optimize combination logic.

IoT Integration: Monitor production capacity remotely, receive fault alerts, and debug parameters online.

Visual-assisted weighing: Cameras detect material clumping or shortages and automatically adjust feeding.

Rapid modular expansion: Add weighing hoppers later to increase capacity without replacing the entire unit.

Still losing raw materials due to inaccurate weighing and facing high labor costs for manual packaging?

Zhongshan Zhonghengda specializes in custom-built multihead weighers. We offer free machine configuration analysis and precise quotes tailored to your product type, target weight per pack, production line layout, and daily capacity. On-site trial runs are also available upon request.
